asked Mar 7 in Engineering & Technology by anonymous

1 Answer

1 like 0 dislike
answered Mar 8 by Cecil

In electronics, a diode is a two-terminal electronic component that conducts primarily in one direction (asymmetric conductance); it has low (ideally zero) resistance to the flow of current in one direction, and high (ideally infinite) resistance in the other.

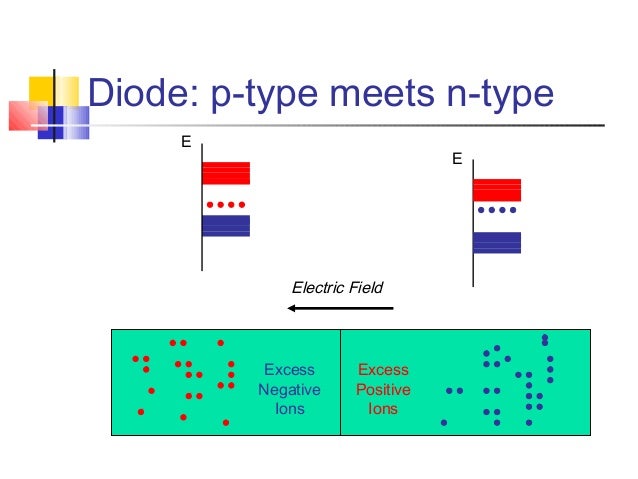

The contacting surface of P- and N-type semiconductors is a P-N junction.

When P-type and N-type come into contact, carriers, which are holes and free electrons, are attracted to each other, recombine at the junction of P-type and N-type, and disappear.

Because there are no carriers near the junction, it is called a depletion layer, and it becomes the same state as an insulator

When voltage is applied by connecting P-type to "+" electrode and N-type to "-" electrode, electrons flow from N-type region to P-type region, electrons that did not disappear through recombination with holes move to “+” electrode, and current flows.

The same mechanism applies to holes in P-type region.

...
